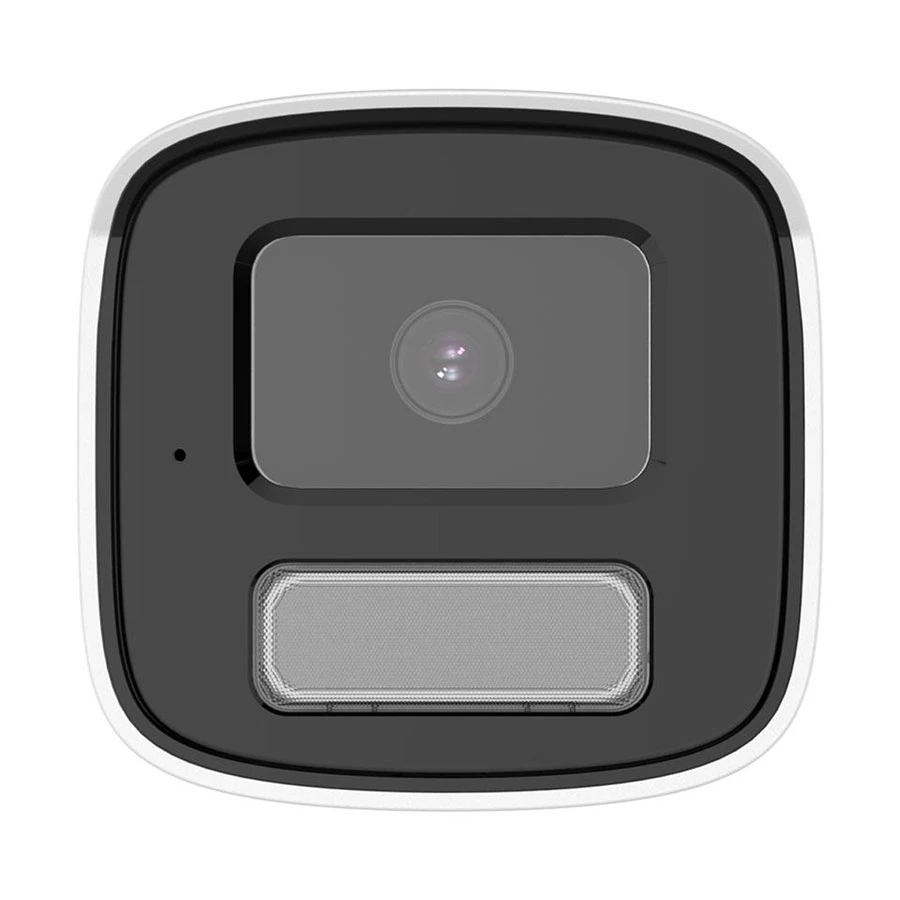

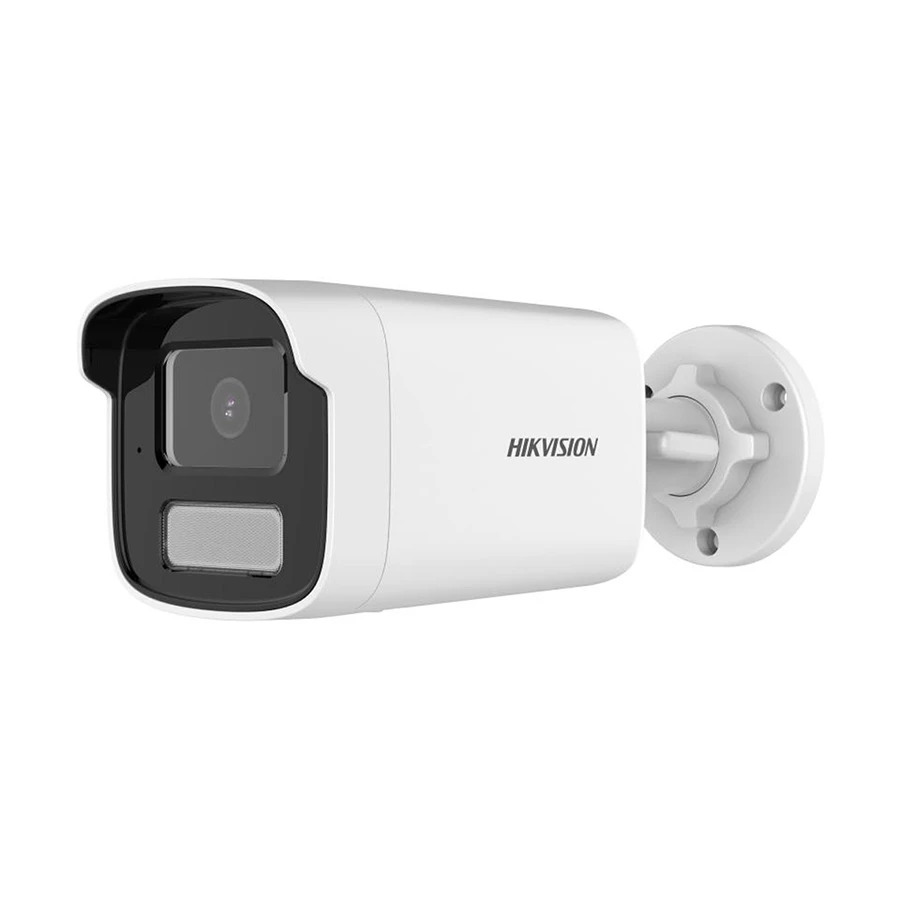

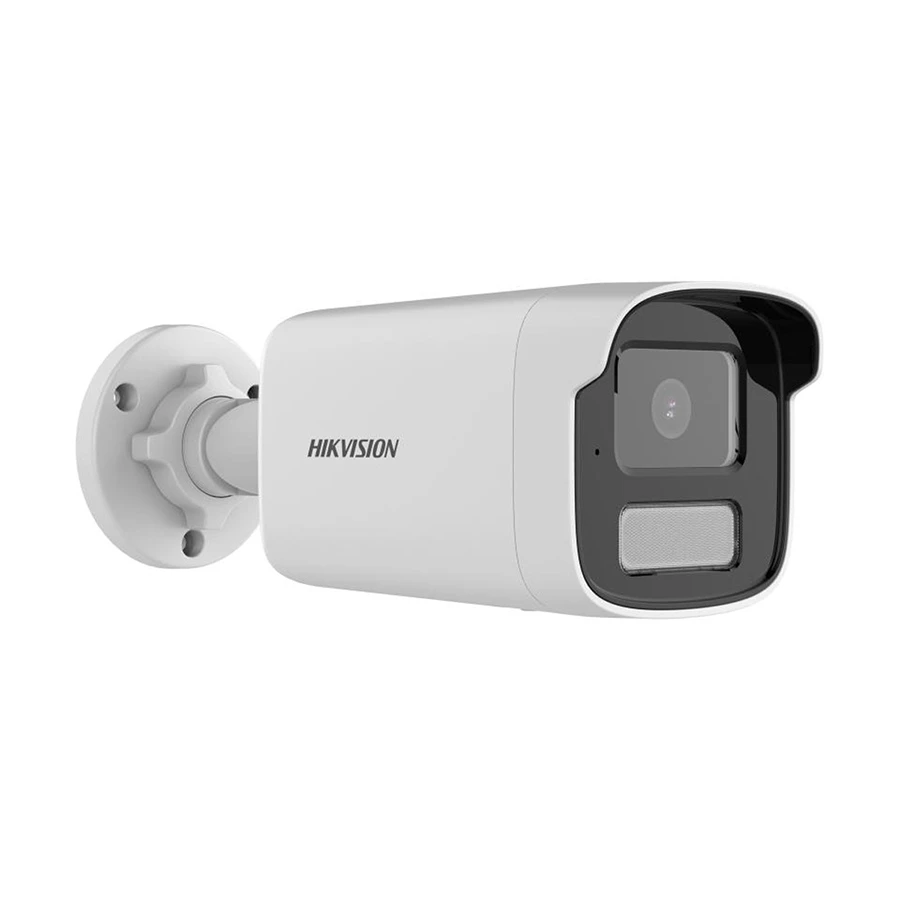

Hikvision DS-2CD1T23G2-LIU 2MP Bullet IP Camera
Details
- Model: DS-2CD1T23G2-LIU
- Image Sensor: 1/2.9″ Progressive Scan CMOS
- Resolution: Max. 2MP (1920 × 1080) at 25/30 fps.
- Lens: 4 mm; 6 mm, Aperture: F1.6, IR Distance: 50m
- Features: PoE, DWDR, 3D DNR, Smart Detection, IP67
৳ 4,000.00 ৳ 4,500.00
Specification
| Camera | ||
| Image Sensor | 1/2.9″ Progressive Scan CMOS | |
| Resolution | 1920 × 1080 | |
| Shutter Speed | 1/3 s to 1/100,000 s | |
| Day & Night | IR cut filter | |
| Min. Illumination | Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR | |
| SNR (dB) | ≥ 52 dB | |
| Angle Adjustment | Pan: 0° to 360°,tilt: 0° to 180°,rotate: 0° to 360° | |
| Lens | ||
| Lens Type | Fixed focal lens | |
| Lens Mount | M12 | |
| Focal Length | 4 and 6 mm optional | |
| Aperture | F1.6 | |
| Field of View | 4 mm, horizontal FOV 83°, vertical FOV 44°, diagonal FOV 99° 6 mm, horizontal FOV 51°, vertical FOV 27°, diagonal FOV 60° |
|
| Iris Type | Fixed | |
| DORI Distance | 4 mm, D: 56 m, O: 22 m, R: 11 m, I: 5 m 6 mm, D: 91 m, O: 36 m, R: 18 m, I: 9 m | |
| Illuminator | ||
| IR LEDs | IR, White Light | |
| IR Distance | Up to 50 m | |
| IR Wavelength | 850 nm | |
| Video | ||
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG | |
| Main Stream | 50 Hz: 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 720) | |
| Sub Stream | 50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360) | |
| Video Bit Rate | 32 Kbps to 8 Mbps | |
| Day/Night | Auto,Schedule | |
| BLC | Yes | |
| HLC | Yes | |
| WDR | Digital WDR | |
| Gain Control | Yes | |
| Region of Interest (ROI) | 1 fixed region for main stream | |
| Mirror | Yes | |
| Privacy Masking | 4 programmable polygon privacy masks | |
| Audio | ||
| Audio Compression | G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC | |
| Built-in Microphone | Yes | |
| Environment Noise Filtering | Yes | |
| Audio Sampling Rate | 8 kHz/16 kHz | |
| Audio Bit Rate | 64 Kbps (G.711 ulaw)/64 Kbps (G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC) | |
| Others | Audio Type: Mono sound | |
| Storage | ||
| Card Slot | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB | |
| Network | ||
| Protocol | TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP | |
| Simultaneous Live View | Up to 6 channels | |
| API | Open Network Video Interface (Profile S, Profile T, Profile G (only -F model supports)), ISAPI ,SDK | |
| User/Host | Up to 32 users 3 user levels: administrator, operator, and user | |
| Client | iVMS-4200,Hik-Connect | |
| Web Browser | Plug-in required live view: IE 10, IE 11, Local service: Chrome 57.0+, Firefox 52.0+ | |
| Interface | ||
| Network Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port | |
| Alarm | ||
| Basic Detection | Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception | |
| Others | Linkage: Upload to FTP/memory card (-F), send email, notify surveillance center, trigger recording (-F), trigger capture | |
| Environment | ||
| Operating Temperature | -30 °C to 60 °C (-22 °F to 140 °F) | |
| Operating Humidity | Humidity 95% or less (non-condensing) | |
| Storage Temperature | -30 °C to 60 °C (-22 °F to 140 °F) | |
| Storage Humidity | Humidity 95% or less (non-condensing) | |
| Water Protection | IP67 | |
| Power | ||
| Power Supply | 12 VDC ± 25%, 0.5 A, max. 6 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 7 W | |
| PoE Standard | IEEE 802.3af | |
| Physical Information | ||
| Casing Material | Metal & Plastic | |
| Dimension | 83.7 mm × 80.7 mm × 205.6 mm (3.3″ × 3.2″ × 8.1″) | |
| Weight | Approx. 580 g (1.3 lb.) | |
| Warranty Information | ||
| Warranty | 1 Year | |
Based on 0 reviews
Be the first to review “Hikvision DS-2CD1T23G2-LIU 2MP Bullet IP Camera”
Related products
-
CCTV Camera & Accessories

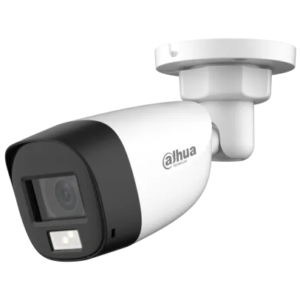

Dahua HAC-HFW1200CLP-IL-A 2MP Smart Dual Light Audio Bullet CC Camera
